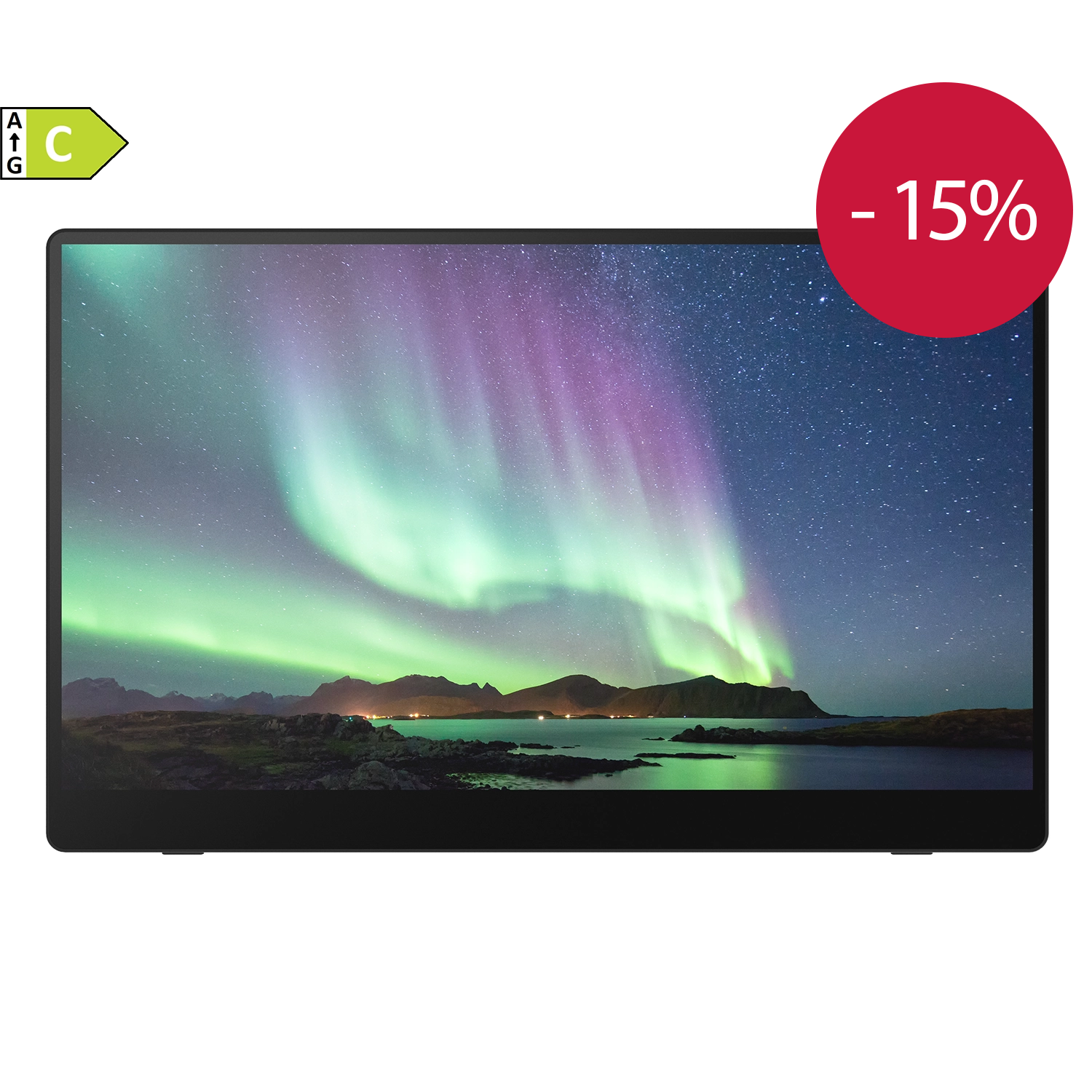

RICOH Portable Monitor 150
RICOH Portable Monitor 150
- Mains powered
- 560g: ultra-lightweight - easy to carry, set up and use anywhere
- 15.6-inch OLED screen for high-quality, high contrast vivid images
- 10-point multi-touch touchscreen
- Energy efficiency: C
Product Description
The mains-powered RICOH Portable Monitor 150 can be easily handed to customers or colleagues for a more personal, engaging sharing meeting experience.
The generous high-quality, high-contrast OLED screen delivers vivid images, making content easier to consume, review and create. The touchscreen (with optional stylus) enables the user to highlight, directly draw on or annotate content, delivering instant capture of feedback and fast, efficient communication of thoughts and ideas. Portable monitor convenience also makes the RICOH 150 an ideal second screen for busy users on-the-go because it’s easy to carry, set up and use in small spaces or when travelling.
Ultra-lightweight second screen
At just 560g the RICOH Portable Monitor 150 provide an accessible, ultra-lightweight second screen experience. It’s easy to carry, set up and use anytime, anywhere.
15.6-inch OLED display
RICOH Portable Monitors produce vivid images and crisp text thanks to the large, high-quality OLED display. Experience incredible contrast for inky black tones and bright, punchy colours, making content easier to consume, review and create.
Responsive 10-point multitouch touchscreen
Using the touchscreen, users can instantly capture feedback. It's easy to work collaboratively quickly and clearly by highlighting text and graphics on shared content.
Easy markup
The ability to directly write, draw and annotate content increases engagement in meetings, allowing rapid and efficient communication of thoughts and ideas. The result? Incredible productivity.
Optional RICOH Stylus
The RICOH Monitor Stylus Pen Type 1 (available separately) can detect 4,096 levels of pressure for a natural handwriting experience. Advanced palm rejection lets you write on the screen just as you would on a paper notepad.
The ideal portable monitor for handouts
Now you can provide monitors to customers or colleagues for full visibility of your content and a more personal and engaging sharing experience. Thin and easy to handle, the RICOH Portable Monitors weigh in at just 560g for the mains power model.
Make content more striking and defined
The high-quality, high-contrast OLED display makes content more powerful, with vivid colours, deeper dark tones and crisp text.
Technical Specifications
| Product Name | RICOH Portable Monitor 150 | |
|---|---|---|
| Display panel | Display method | OLED (Organic Light Emitting Diode) |
| Maximum resolution | 1920 x 1080 | |
| Brightness (max)*1 | 300 nit (=cd/m2) | |
| Contrast | 1:100,000 | |
| Display colours | 8bit+2bit FRC (maximum number of colours: Approx. 1.07 billion colours) | |
| Panel size | 15.6 inches | |
| Refresh rate | 60Hz | |
| Colour gamut | DCI-P3 | |
| Viewing angle | 85° or higher | |
| Response time | 1ms | |
| Blue light cut | Eye Care Display certified | |
| Number of simultaneous display units | 1 unit | |
| Touch panel | Protective glass | Toughened glass, AF (anti-fingerprint) coating |
| Detection method | Active electrostatic coupling method (AES2.0) | |
| 10-point multi-touch*2 | Supported (Windows®/ Android™) | |
| Interfaces | Back side | USB Type-C® 2 (External power supply/ DisplayPort™ signal input function supported) |
| Screen wireless communication method, Encryption | N/A | |
| Supported wireless LAN standard | N/A | |
| Audio | Built-in speaker | 1.5W x 2 |
| Power supply (external) | Input method | USB Power Delivery (USB Type-C® powered) |
| Input*3 | Max. 45W (5V/3A, 9V/3A, 15V/3A, 20V/2.25A) | |
| Output (power pass through)*4 | Max. 25W (5V/0.9A, 9V/0.77A, 15V/1.66A, 20V/1.25A) | |
| ON mode power consumption | 13 W or less | |
| Standby mode power consumption | 0.2 W or less | |
| Internal battery | Type | N/A |
| Capacity | N/A | |
| Charging time | N/A | |
| Operating time (when fully charged) | N/A | |
| Environment | Operating temperature | 0~35°C |
| Operating humidity | 10-80% (without condensation) | |
| Continuous operating time |
20 hours*5
|
|
| Weight (main unit only) |
1.23lb (560g)
|
|
|
Dimensions (main unit only) |
356.0 x 10.8 x 221.7mm (thinnest part: 4.8mm) | |
| Screen installation angle | Landscape orientation | Free stop (Approx. 75–16°), Recommended angle for writing: Approx. 16° |
| Portrait orientation | Approx. 70° | |
| Certification supported Certifications | Energy Star, Act on Promoting Green Purchasing | |
| Bundle items | USB Type-C® cable x1, Cable clamps x4, Sleeve case, Warranty card, Read This First, Quick Guide | |
| Main unit warranty period | 3 years | |
*1The brightness varies depending on the input mode's video adjustment settings, etc. Brightness will also deteriorate over time. It does not maintain a constant brightness.
*2Touch-and-handwriting features and display accuracy are essentially dependent on the handling of OS or each application.
*3If the input power is insufficient according to the specifications of this unit, the operation may become unstable.
*4Depending on PC or smartphone specifications, pass-through may not be possible or there may be restrictions on the operation of the unit.
*5Due to the nature of organic EL, there is a possibility that an afterimage may remain on the display when a still image or still character is displayed for a long time. This product is not designed for continuous operation of more than 20 hours. Use of the product beyond the specifications of continuous operation time may shorten the life of the main unit. It is not guaranteed that it will connect to all PCs and smartphones.
What's in the Box
- RICOH Portable Monitor 150
- 1 x USB Type-C® cable
- 4 x Cable clamps
- Sleeve case
- Warranty card
- Read This First
- Quick Guide
