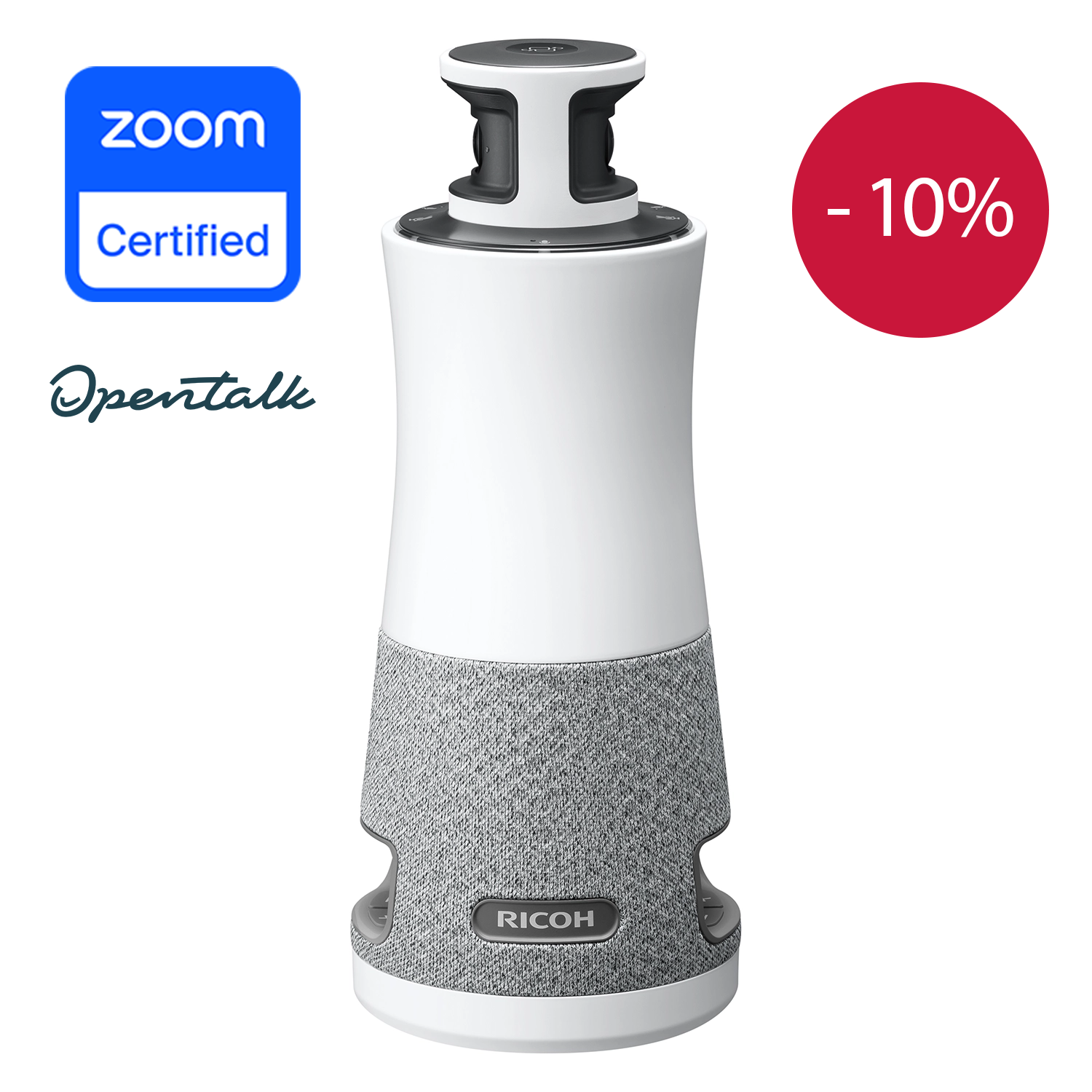

RICOH 360 Meeting Hub
RICOH 360 Meeting Hub
- Zoom Rooms Certified RICOH 360 Meeting Hub
- 360 Panoramic View
- High-Resolution Images
- Stress-free and seamless to set up and use
- Portable ergonomic design
- One-Touch Multiple Screen Layout Switching
Product Description
Makes remote meetings feel more inclusive, immersive and seamless.
Automatic Image Adjustment
The camera incorporates auto-zoom, contrast, white balance, Anti-Flicker, Local Tone Mapping (LTM) and exposure features. Participants up to 3.6 metres from the unit are displayed in high clarity, showing facial expressions in detail.
Voice Activation at Distance
The unit’s omni-directional microphones pick up all speakers’ voices up to 6 metres from the unit in a 360-degree radius. Even if participants are standing or moving around, interactions can flow seamlessly.
Hear Everyone Clearly
Auto Gain Control automatically adjusts the sound level so that all participants within radius can be heard equally clearly - with no need to manually adjust the volume for different speakers.
High Performance Audio
A HiFi4 DSP audio processing chip and firmware combine with the omni-directional speakers to deliver high-quality sound. Acoustic echo cancellation, noise reduction and simultaneous two-way conversation technology ensure all meeting participants, even those in areas with background noise, can speak and be heard clearly and naturally.
Gives everyone the confidence to participate
360 Panoramic View
The 360-degree high-resolution camera displays all meeting participants in a panoramic view, so everyone is seen equally, and no one appears distant.
Highlights Multiple Participants
The camera identifies up to 8 active participants in the meeting for visual auto-focus, and highlights the 3 most recent speakers in larger frames so that remote attendees can easily see who is speaking, promoting free-flowing conversations.
High-Resolution Images

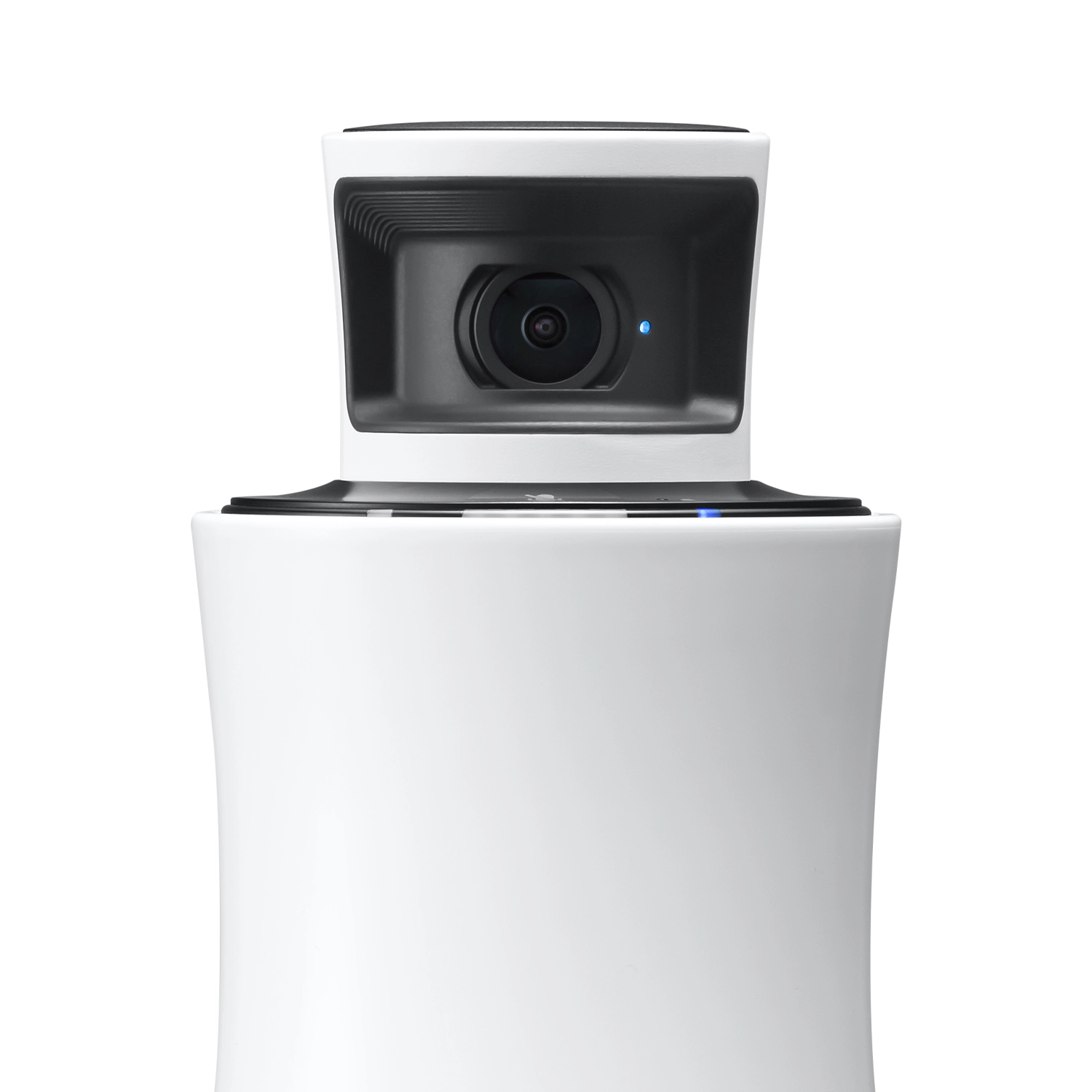

The dual fisheye lens delivers high-resolution images ensuring every individual in the group is displayed simultaneously and can be seen clearly.
Use anywhere for every audience and meeting

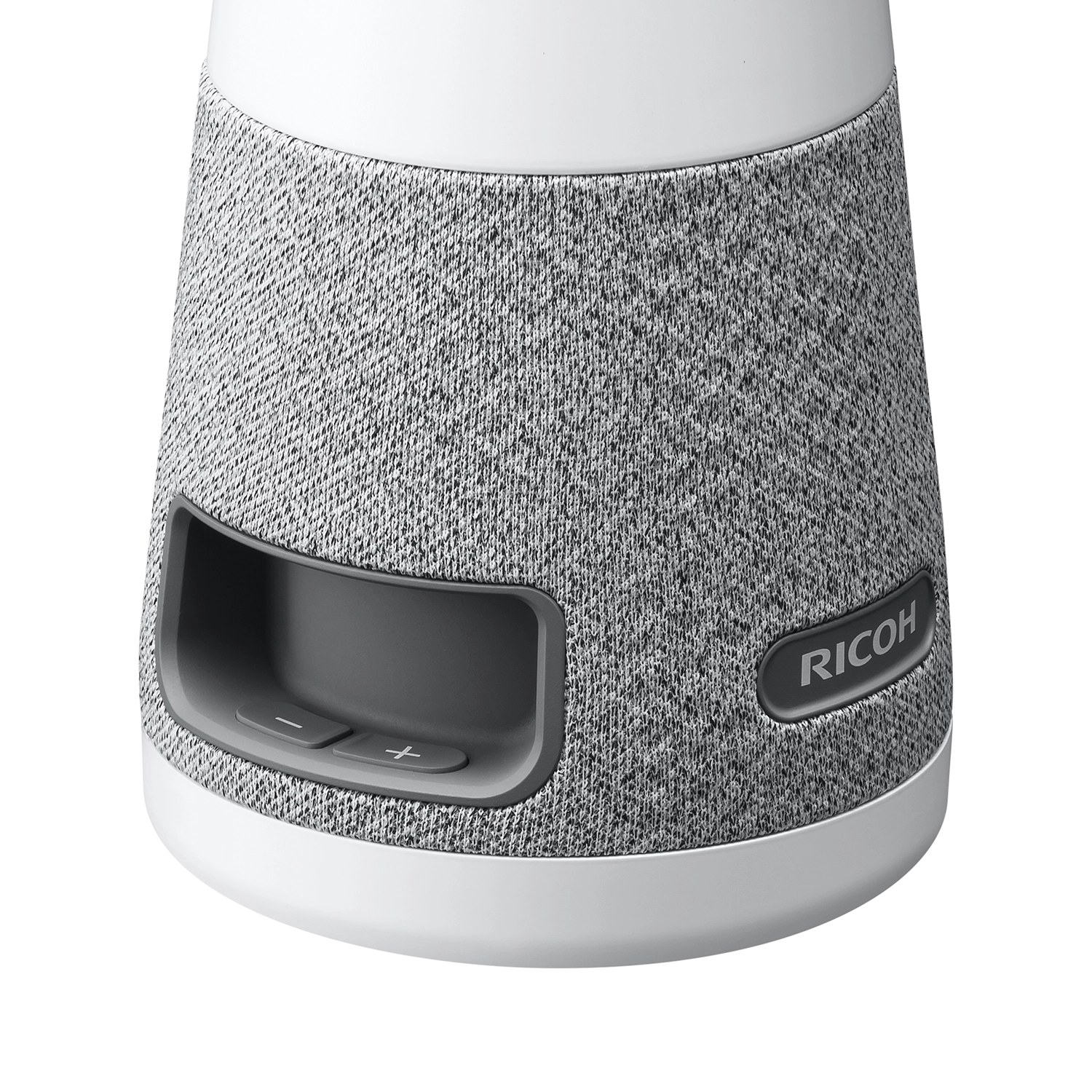

Portable Ergonomic Design
The lightweight 1.1kg ergonomic design makes the RICOH 360 Meeting Hub easy to carry and set up on any flat surface. The unit’s wide base and curved body make it both stable and easy to grip. And the inset camera design protects the lens from damage in transit.
Versatile Location
With its omni-directional mic and speakers, the RICOH 360 Meeting Hub can be used in a variety of locations and meeting set-ups. Mounted on a tripod stand, it is ideal for stand-up meetings and huddles in a factory, on a store floor or at an event site.
One-Touch Multiple Screen Layout Switching

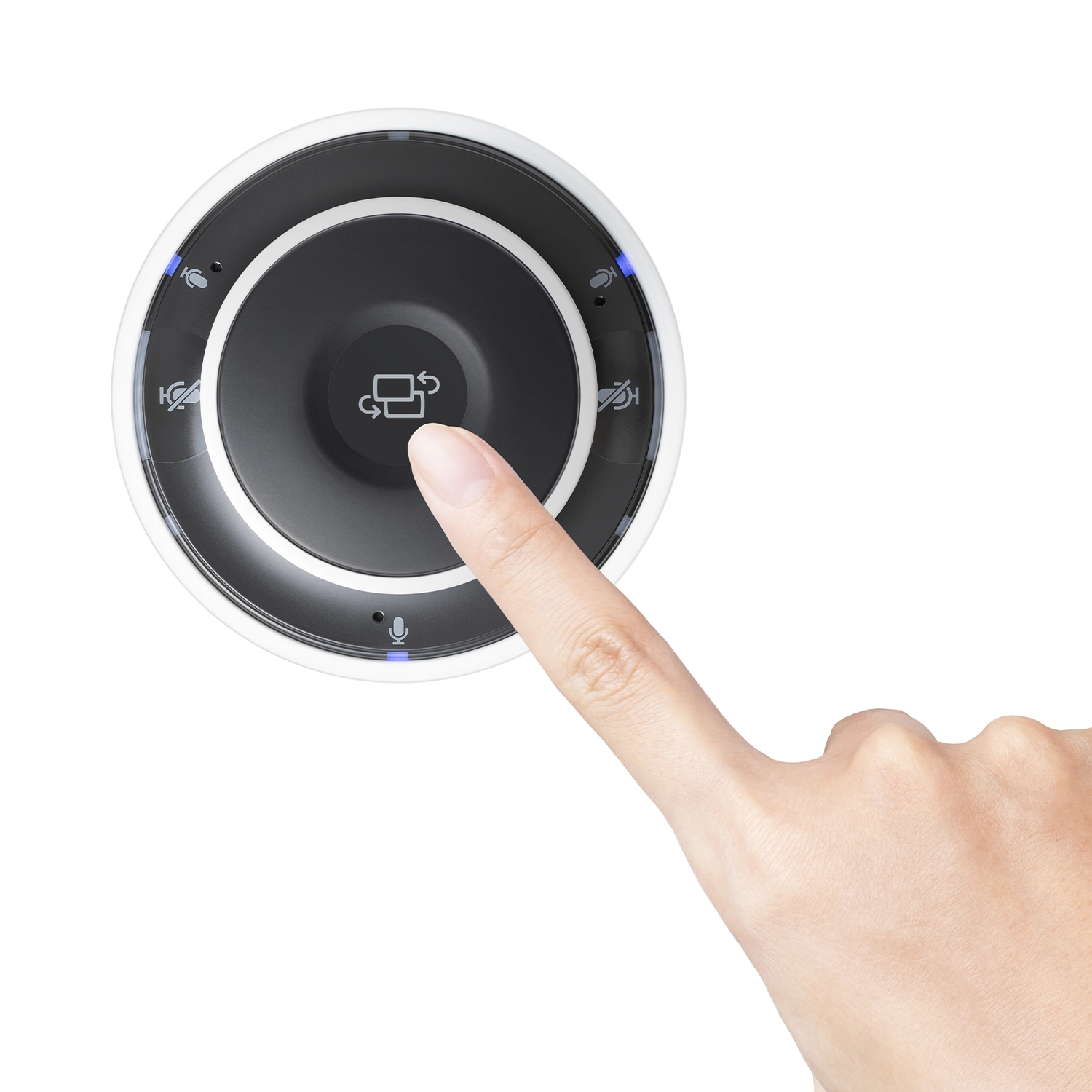

A touch sensor on the top of the unit means you can instantly switch between screen layout options to accommodate various meeting scenarios. Choose from 360-degree panoramic or split-screen 180-degree views, to display both sides of a meeting table. Up to 4 layout options are available with manually selected main speaker image highlighted or with other speakers in sidebar.
Stress-free and seamless to set up and use
Plug and Play Set Up

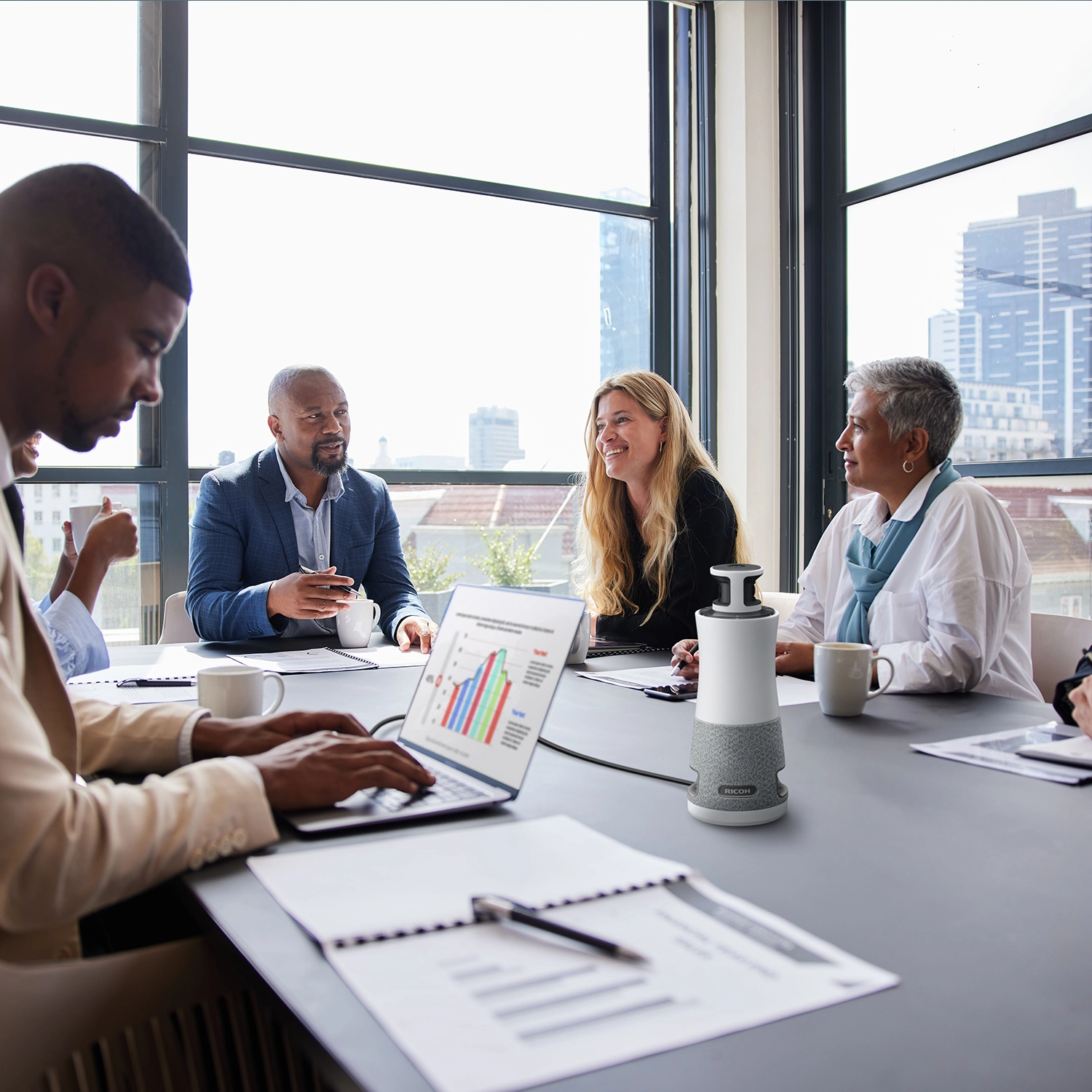

Simply position the device in the centre of your meeting table or mount on a tripod and plug into a laptop with a USB-C cable to start a meeting. No complicated conferencing configuration or software to download.
Conference Platform Compatible
This Smart Meeting Device works with most common conferencing platforms including Zoom, Microsoft Teams, Webex and Google Meet.
Technical Specifications
| Product Name | RICOH 360 Meeting Hub | ||
|---|---|---|---|
| Model name | RICOH Meeting 360 V2 | ||
| Camera | Field of view (FOV) | Horizontal: 360°, Vertical: 42±2° | |
| Image sensor | 12M x 2 | ||
| Output resolution*1 | 1920 x 1080, 1280 x 720 | ||
| Frame rate*2 | 30 fps, 10 fps | ||
| Video range | 3.6m | ||
| Image processing | Auto White Balance, Auto Exposure, Anti-Flicker, LTM (Local Tone Mapping), Dewarping, Stitch, Cropping, Zoom (Scalar) | ||
| Microphone | Method | Three-microphone array | |
| Directivity | 360° | ||
| Audio pickup range | 20 ft (6.0m) | ||
| Audio processing | Mute, Auto Gain Control, Noise Reduction, Echo Cancellation | ||
| Speaker | Wattage x Number of speakers | 8 W x 3 | |
| Directivity | 360° | ||
| Sound Pressure Level (SPL) | Power supply from AC adapter | 91 dB (1 m) | |
| Power supply from PC via USB Type-C cable | 81 dB (1 m) | ||
| Network*3 | Ethernet | 10BASE-T, 100BASE-TX, 1000BASE-T | |
| Wireless LAN | 802.11a/b/g/n/ac | ||
| Screen display | Layout |
|
|
| 360° Panoramic image on/off | Supported*5 | ||
| Size | Dimensions (W x D x H) | 110.2 x 110.2 x 272.6 (mm) / 4.34 x 4.34 x 10.73 (inches) | |
| Weight | 1129 g / 2.49 lb | ||

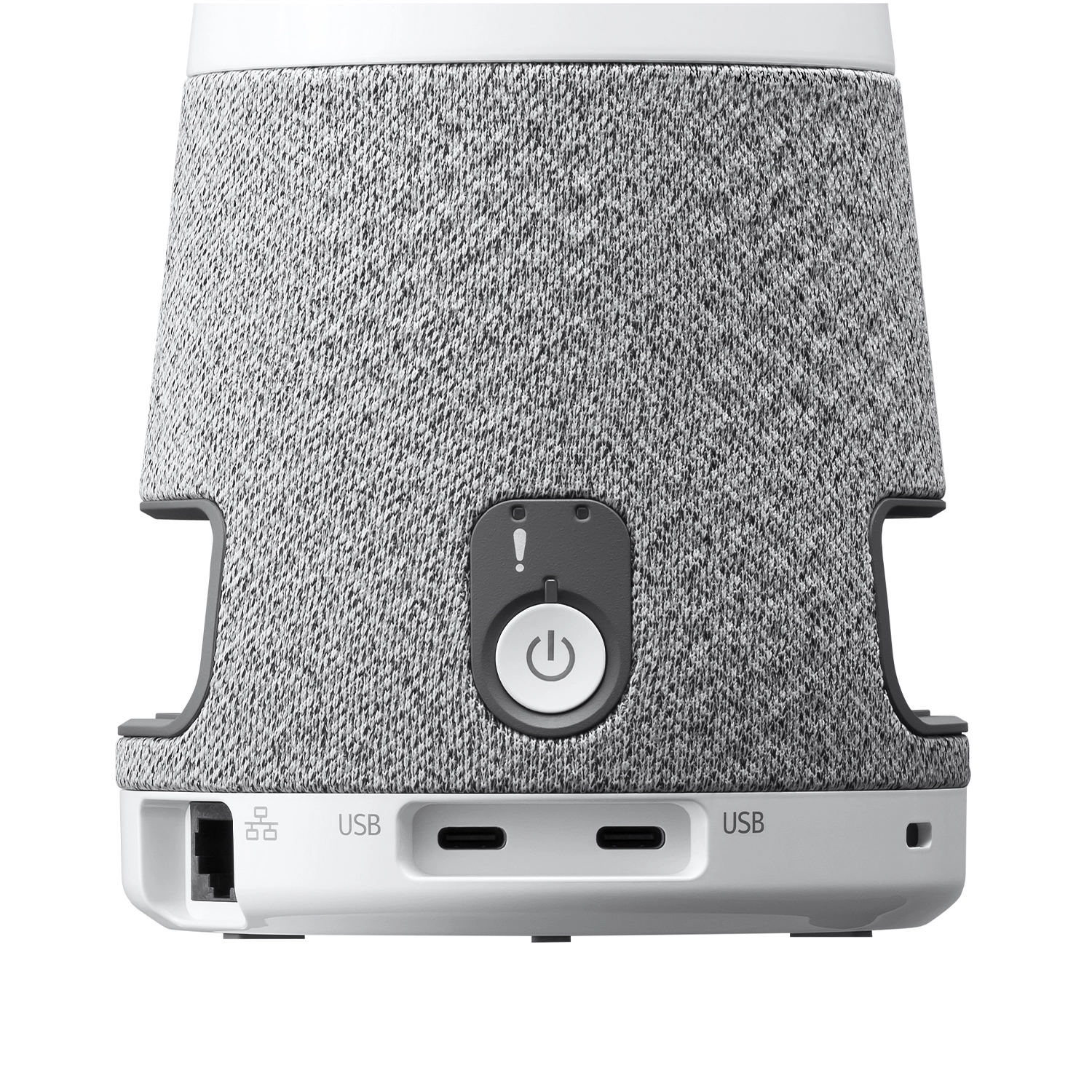

| Interface | USB Type-C port | 2 ports (USB 2.0, USB 3.1, PD 3.0) | |
| Ethernet port*6 | RJ-45 x 1 port | ||
| Kensington security slot | Standard slot (3 mm x 7 mm) x 1 slot | ||
| USB power delivery | Power supply from AC adapter | DC20 V / 2.25 A (max), AC100-240 V 50-60 Hz 1.7 A | |
| Power supply from PC via USB Type-C cable | DC5 / 3 A (max) | ||
| Power consumption*7 | Power supply from AC adapter | 45 W | |
| Power supply from PC via USB Type-C cable | 15 W | ||
| Environmental condition | Temperature | 10-32°C | |
| Humidity | 15-80% (No condensation) | ||
| Operating environment | Supported OS | Windows 10 version, 1803 or higher / Windows 11 (64bit) / macOS 12 Monterey / macOS 13 Ventura / macOS 14 Sonoma (MacBook Air, MacBook Pro)*8 | |
| Operation-checked video conferencing platforms | Microsoft Teams / Zoom*9 / Cisco Webex® / Google Meet™ | ||
| Accessories | AC adapter 45 W (20 V 2.25 A), AC power plug, USB 3.1/2.0 m/3 A cable (Type-C to C) x 2, Warranty URL, Read This First, Quick Guide | ||
| Recommended usage environment (When using the layouts that has the active speakers' focus images) | Number of users*10: 1-8 person(s) Range of seated angle: 45 degrees per person Installation position: The main unit must be placed within 3.6m from the person(s) speaking |
||
| Tripod screw thread | 1/4 inch tripod screw hole at the bottom | ||
| Standard warranty period | 2 years | ||
*1Frame rate is automatically switched depending on the speed of the web conference application in use
*2With AC adapter: 30 fps / With power supply via PC: 10 fps
*3Network is used only on the occasion of firmware update
*4Pin Screen can be set in the RICOH Meeting 360 Apps
*5360° Panoramic image can be turned on and off by long-pressing the top of the unit, or in the RICOH Meeting 360 Apps
*6Network is used only on the occasion of firmware update
*7In case PC is compatible with USB power delivery (PD)
*8macOS is supported from the Firmware Version 0002.0001.0000.0021
*9Zoom Rooms Certified
*10The theoretical number of users the camera can ideally capture in this recommended environment
| Free Software / Downloadable software | |
|---|---|
| Product name | RICOH Meeting 360 Apps for Windows |
| Compatible OS | Windows 10 version, 1803 or higher / Windows 11 (64bit) |

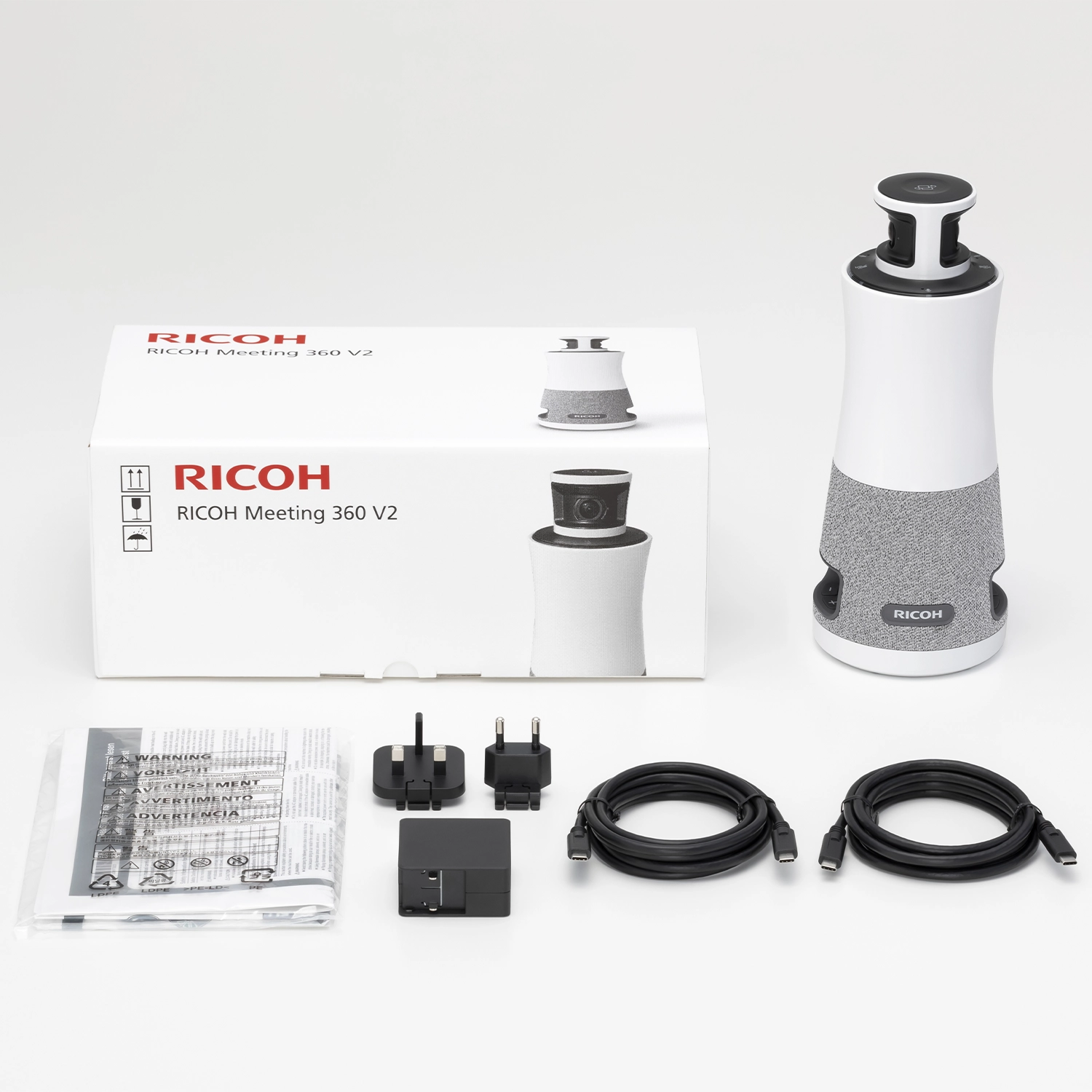

What's in the Box
- RICOH 360 Meeting Hub
- AC Adapter
- USB cable (Type-C to C) x 2
- Type-C AC power plug
- Type-BF AC power plug
- Warranty URL sheet
- Read This First
- Quick Guide
